TOWABLE BOOM LIFTSe
Are you in need of a towable cherry picker or bucket lift? If you're searching for one of these products, Tow-Pro® Series towable boom lifts, known to some as cherry pickers or bucket lifts, give you the reach and mobility you need. Our exclusive line of towable boom lifts lets you tackle the same jobs as other JLG® electric or diesel-powered boom lifts, but with an easier option for transportation.
With these towable lifts, you have the choice of a 24V-DC electric or 11.7-hp gas-powered engine. And with the standard combination hitch, industry-leading 65-mph tow behind speed and hydraulic auto-leveling outriggers, you can have this towable boom lift brought to the job site and working in no time. Purchase or rent a Tow-Pro to complete seasonal tasks like tree trimming, decorating, construction, exterior painting and maintenance.
- This type of lift uses multiple pivot points (joints or knuckles) on the boom sections to give you length and reach, allowing you up-and-over access and vertical reach.

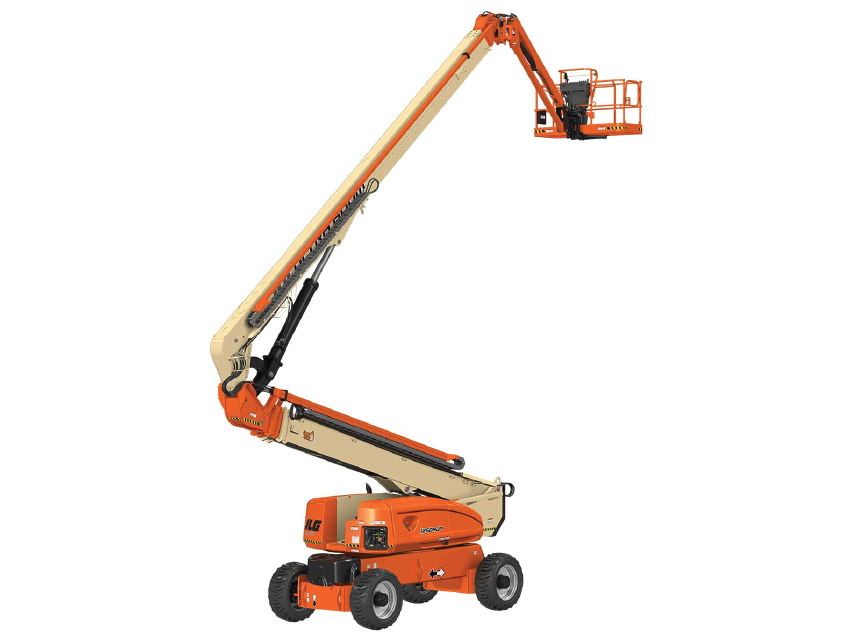

1250 AJP ARTICULATING BOOM LIFT
Key Specs
-Platform Height: 125 ft / 38.1 m
-Platform Capacity - Restricted: 1000 lb / 453.59 kg
-Platform Capacity - Unrestricted: 500 lb / 226.80 kg
-Horizontal Outreach: 63 ft 2 in. / 19.25 m
Key Features
-Ground to 120 ft in 95 seconds 100,000-psi solid steel and a dual 1,000 lb / 500 lb capacity give you stability and capacity
-Equipped with a fuel-effcient Tier 4 engine
-Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware.

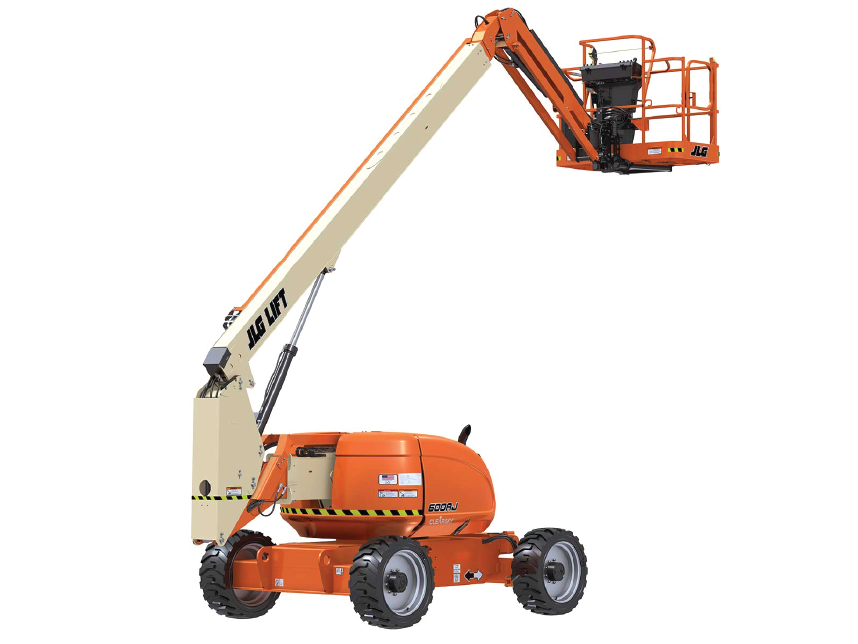

600AJ
Key Specs
-Platform Height: 60 ft 7 in. / 18.47 m
-Platform Capacity - Unrestricted: 500 lb / 226.80 kg
-Horizontal Outreach: 39 ft 9 in. / 12.12 m
Key Features
-Best reach envelope in its class
-Optional articulating jib gets you into hard-to-reach places
-Unmatched maneuverability for confined work areas
800S
Key Specs
-Maximum Lift Capacity: 10000 lb / 4535.92 kg
-Outriggers Up Max Lift Height: 55 ft / 16.76 m
-Maximum Lift Height: 55 ft / 16.76 m
-Maximum Reach: 42 ft / 12.8 m
Key Features
-Enhanced operator comfort—spacious cab, intuitive single joystick and integrated armrest.
-Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
-Greater operator conffidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
-Increased versatility—a wide range of attachment options
-Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware

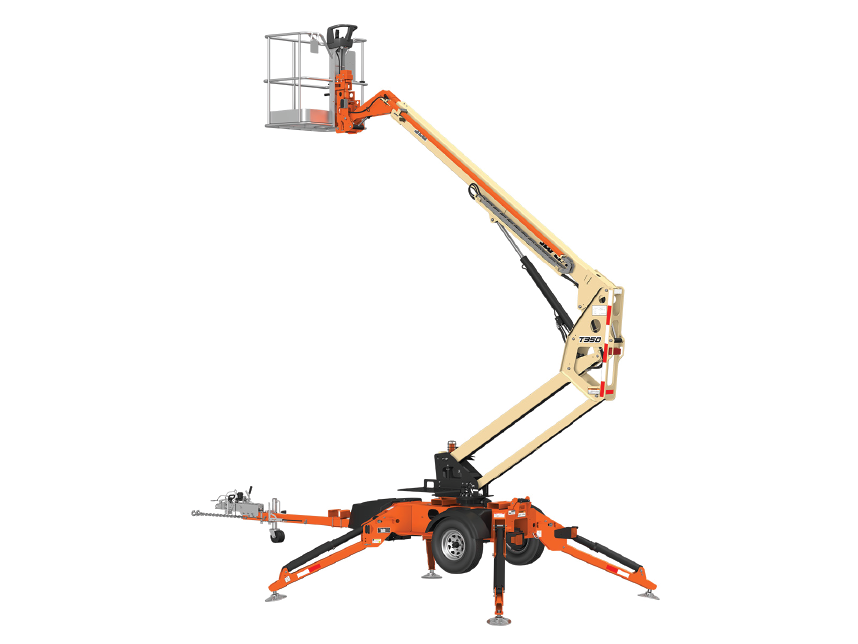

TOW-PRO® BOOM LIFT
A towable boom lift is an articulating boom on wheels that can be towed by a vehicle.
Key Specs
-Horizontal Outreach: 18 ft 9 in. / 5.72 m
-Platform Capacity: 500 lb / 226.80 kg
-Platform Height: 34 ft 5 in. / 10.49 m
Key Features
-Optimize productivity with an 11.7 hp gasoline engine.
-Increase productivity with standard features such as air and water lines to the platform.
-Set up quickly and get right to work with hydraulic, auto-leveling outriggers.
-Detachable platform controls provide more efficient boom positioning with one-hand operation of all boom functions.
-New standard features include an intelligent charger, LED tail lights, lockable hoods, dual USB port in the platform, and a parking brake audible indicator.

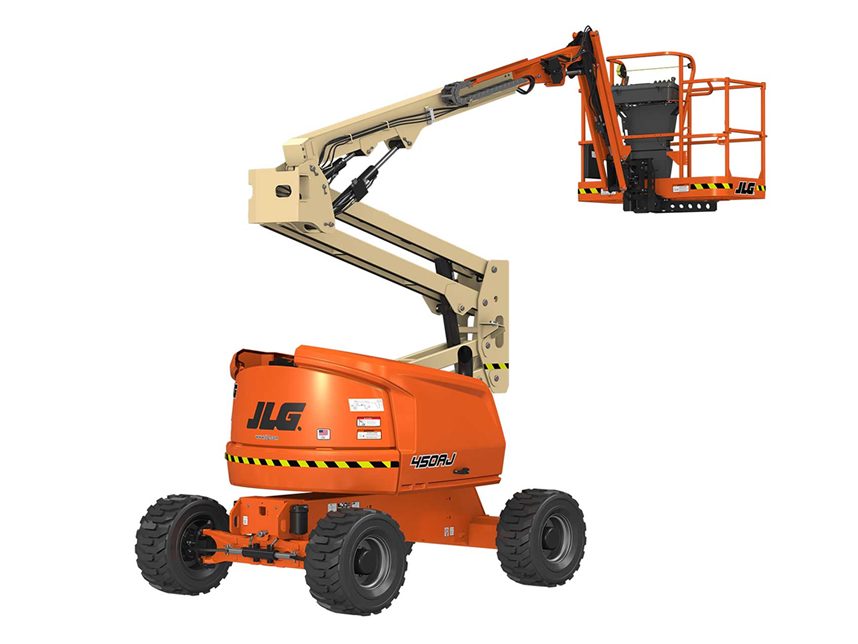

450AJ ARTICULATING® BOOM LIFT
Key Specs
-Horizontal Outreach: 25 ft / 7.62 m
-Platform Capacity: 550 lb / 249.48 kg
-Platform Height: 45 ft / 13.72 m
-Platform Capacity: 550 lb / 249.48 kg
-Platform Height: 45 ft / 13.72 m
Key Features
-Improved multifunction capability increases productivity
-More durability and serviceability thanks to the new DuraTough hood design
-Larger capacity at 550 lb
-Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware

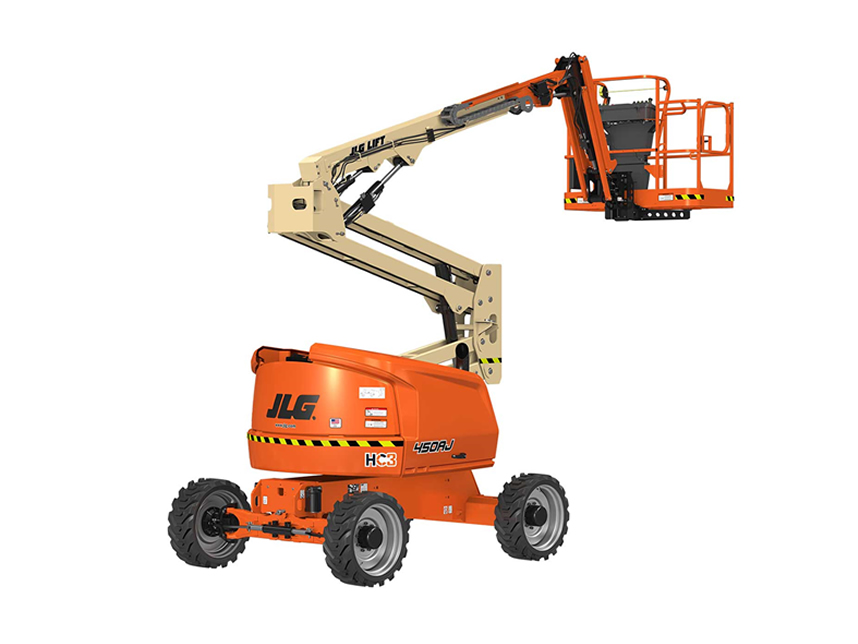

450AJ HC3 ARTICULATING® BOOM LIFT
Key Specs
-Horizontal Outreach: 25 ft / 7.62 m
-Platform Capacity: 1000 lb / 453.59 kg
-Platform Capacity – Restricted 2: 750 lb / 340.19 kg
-Platform Capacity – Unrestricted: 660 lb / 299.37 kg
-Platform Height: 45 ft / 13.72 m
Key Features
-More Flexibility at Height: With three working zones and enhanced capacity, up to three workers and tools can fit into the platform
-Increased Efficiency: A zero calibration automatic load sensing system eliminates the need to use external weights to calibrate the machine
-Enhanced Operator Experience: An upgraded light panel is more visible in the sun, while a chassis tilt alarm alerts the operator when the machine is on a slope that exceeds 5 degrees
-Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware

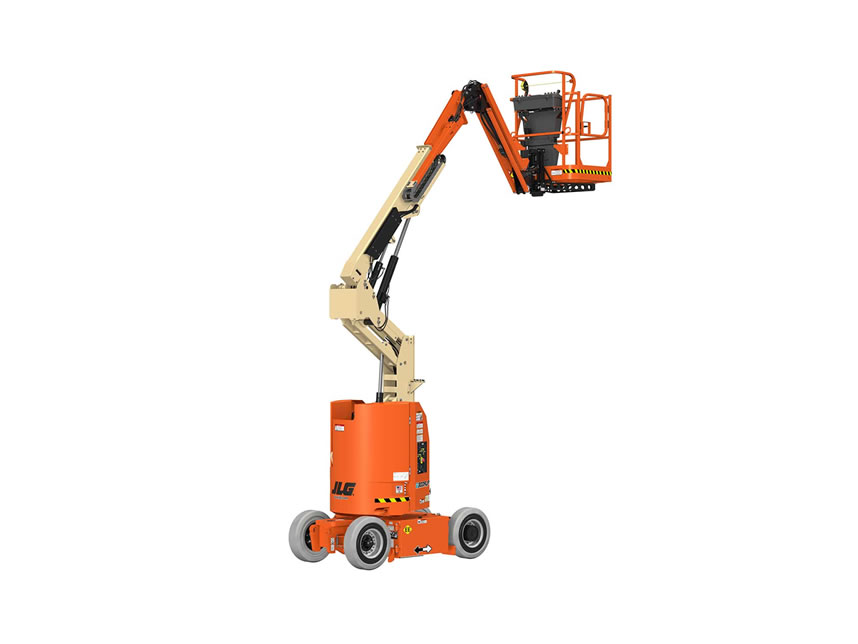

E300AJP ARTICULATING ® BOOM LIFT
Key Specs
Platform Height: 29 ft 5 in. / 8.97 m
Machine Width: 4 ft / 1.22 m
Platform Capacity – Unrestricted: 500 lb / 226.80 kg
Key Features
-Accessibility – up and over access, optional jib
-Maneuverability – move over uneven surfaces with Automatic Traction Control
-Productivity – longer with longer duty cycles
-Environmentally friendly – zero emissions
-Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
